Immersion Heater, Thermocouple and Control box for Aluminum

We have many track records with the aluminum immersion heater, and can offer reliable heater and thermo couple.

�@L type immersion heater	�ADipped type immersion heater	�BRadiant heater as under heater
�CThermocouple for aluminum	�DControl box for aluminum

L type immersion heater

Generally, used for a holding furnace to preheat. 200V single-phase 3KW 〜 6KW.
(Currently 10KW 〜 20KW are under development)

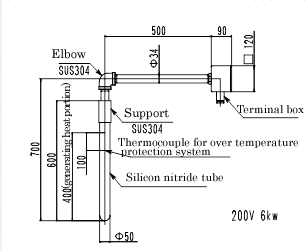

The following 700x500 L Type 200V single-phase 6KW Price: 240,000 Japanese yen per heater Note: Other sizes or lengths available, Contact our Internet Sales Dep. To Order or Quote

Go to Top 　

Dipped type immersion heater

Newly-developed product Acquired utility model

The following 800x1000 L Type Please insert from the top of the furnace installation.Possible to remove and easy to clean inside of furnace. 200V single-phase 8KW Price: 560,000 Japanese yen per heater Note: Other sizes or lengths available, Contact our Internet Sales Dep. To Order or Quote

Go to Top 　

Radiant heater as under heater

Newly-developed 「 Accordion type Radiant Heater 」　 Acquired utility model
Rated Voltage 200V Test proceeding type 10KW, 15KW and 20KW in the real furnace.
(please let us know if you are interested in)

The following 1000L 50V single-phase 11KW Price: 90,000 Japanese yen per heater Note: Other sizes or lengths available, Contact our Internet Sales Dep. To Order or Quote

Go to Top 　

Thermocouple for aluminum

Generally, this thermocouple is used for an aluminum furnace.

Most popular type is 500x600 L Type Price: 60,000 Japanese yen per heater Note: Other sizes or lengths available, Contact our Internet Sales Dep. To Order or Quote

Go to Top 　

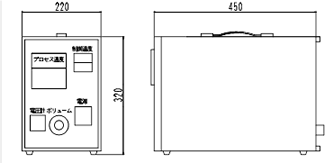

Control box for aluminum 　　（ 2 Circuit Control ）

Feature ;
For process control used by Thyristor control. Adjust the voltage by power volume.
The over heated protection system is standard equipment and enable to set up any temperature.
We recommend the process temperature as 720 ℃ ,The temperature of over heat protection system is 880 ℃ .

The following type 40A

Exclude wiring material from heater to control box.
Lead wire, compensating lead wire, solder less terminal, flexible tube etc are also available, Contact our Internet Sales Dep.

Price

Available for any other heater control system.
(Temperature range from 0 to 1200 ℃　 Input thermocouple type K.)
