Resistance thermometer

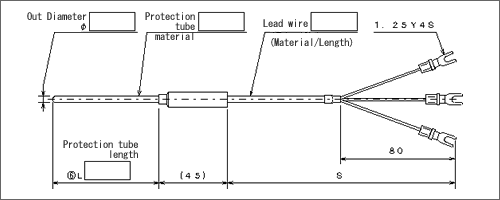

RH-35 Resistance thermometer with protection tube

Price

Protection tube length
φd
100
300
500
φ1.6
\6,422
\6,734
\7,046
φ2.4
\3,952
\4,264
\4,576
φ3.2
\3,432
\3,744
\4,056
φ4.8
\3,536
\3,926
\4,316

Standard Specification
・ Normal resistance value
　 Pt100Ω　at 0℃
・ Number of Element
　 Single Element

・ Protection tube material
　 　φ1.6　φ2.4　　SUS304
　 　φ3.2　φ4.8　　SUS316
・ Measuring current
　 2mA

・ Accuracy
　 JIS(Japanese Industrial Standard) class B

・ Lead wire
　 Heatproof PVC lead wire with three conductors ×2m




Note: Other sizes or lengths available, contact our Internet Sales Dep .
All Yen amounts on this site are shown in JAPANESE YEN currency.Sales tax will be applied to orders.
About Terms and conditions　　About Warranty

Note: Quantity discount applied.

To Order or Quote



Go to Top 　

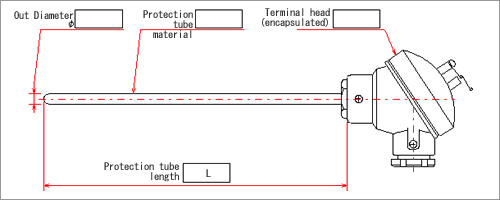

RH-90 Resistance thermometer with terminal head(encapsulated)
