Thermocouple for Molten Aluminum

The significance of measuring molten aluminum temperature continuously becomes strong day by day. Our many years experience, we offer the higher-precision and long-life thermocouple for molten aluminum.

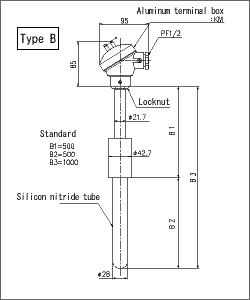

Construction

Our thermocouple is using highly precise K sheath thermocouple inside. For outer tube, we use high purity silicon nitride which is very strong to thermal shock, high mechanical strength under high temperature and large corrosion resistance for molten aluminum. For low-pressure molding machines, our special processing sheath thermocouple shows you the safety of being damaged the protective tube.

Standard length （mm） A1 500 A2 550 A3 650	Standard length （mm） B1 500 B2 600 B3 1000

Distinctions

□ Designed for molten aluminum
□ Compact and saving space
□ Long life

Application

□ To measure the continuous molten aluminum temperature inside of the crucible
□ To measure the continuous temperature of melting furnace
□ To measure the continuous temperature of runner
□ To measure the continuous temperature of holding furnace
□ To measure the continuous temperature of low pressure casting machine

Price

Available for any other heater control system.
(Temperature range from 0 to 1200 ℃　 Input thermocouple type K.)
