THERMCOUPLE
Mineral insulated thermocouple Type K / JIS(Japanese Industrial Standard) class 2
Price
① General compensating
lead wire
(EXD):Heatproof PVC （7/φ0.3ｘ2 0.5sq) |
| |
Ｌ(mm) |
ｄ(mm) |
100 |
300 |
500 |
1000 |
0.5 |
\5,310 |
\5,980 |
\6,480 |
\8,160 |
1 |
\2,960 |
\3,110 |
\3,220 |
\3,600 |
1.6 |
\2,850 |
\3,020 |
\3,140 |
\3,560 |
2.3 |
\2,890 |
\3,120 |
\3,280 |
\3,840 |
3.2 |
\2,900 |
\3,130 |
\3,300 |
\3,880 |
4.8 |
\3,070 |
\3,540 |
\3,880 |
\5,040 |
6.4 |
\3,350 |
\4,180 |
\4,800 |
\6,880 |
8 |
\3,620 |
\4,820 |
\5,720 |
\8,720 |
Price ② Heat resistant compensating
lead wire
(EXB):Glass （7/φ0.3ｘ2 0.5sq) |
| |
Ｌ(mm) |
ｄ(mm) |
100 |
300 |
500 |
1000 |
0.5 |
\5,630 |
\6,300 |
\6,800 |
\8,480 |
1 |
\3,280 |
\3,430 |
\3,540 |
\3,920 |
1.6 |
\3,166 |
\3,340 |
\3,460 |
\3,880 |
2.3 |
\3,210 |
\3,440 |
\3,600 |
\4,160 |
3.2 |
\3,220 |
\3,450 |
\3,620 |
\4,200 |
4.8 |
\3,390 |
\3,860 |
\4,200 |
\5,360 |
6.4 |
\3,670 |
\4,500 |
\5,120 |
\7,200 |
8 |
\3,940 |
\5,140 |
\6,040 |
\9,040 |
Price
③Heat resistant compensating
lead wire
(EXA):Glass outer copper shielded （7/φ0.3ｘ2 0.5sq) |
| |
Ｌ(mm) |
ｄ(mm) |
100 |
300 |
500 |
1000 |
0.5 |
\5,790 |
\6,460 |
\6,960 |
\8,640 |
1 |
\3,440 |
\3,590 |
\3,700 |
\4,080 |
1.6 |
\3,330 |
\3,500 |
\3,620 |
\4,040 |
2.3 |
\3,370 |
\3,600 |
\3,760 |
\4,320 |
3.2 |
\3,380 |
\3,610 |
\3,780 |
\4,360 |
4.8 |
\3,550 |
\4,020 |
\4,360 |
\5,520 |
6.4 |
\3,830 |
\4,660 |
\5,280 |
\7,360 |
8 |
\4,100 |
\5,300 |
\6,200 |
\9,200 |
| Standard Specification |
|
|
・
Sheathed Material
SUS３１６ |
・
Type of thermocouple
Type K |
|
・
Hot Junction
Ungrounded(Grounded) |
・
Accuracy
JIS(Japanese Industrial Standard) class 2
|
|
| ・
Normal length of lead wire is 2 meter
( other length available) |
|

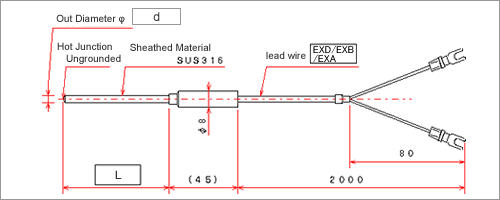

T-35 Mineral insulated thermocouple with lead wire（

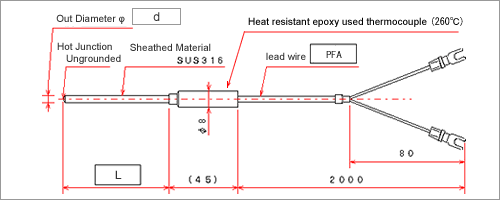

Heat resistant epoxy used thermocouple
）
※ This thermocouple
resists
to high temperature
on sleeve (connecting) part
so that to be able to use for heating facilities.
